PBE-M5-400 Specification

Dimensions

420 x 420 x 275 mm
(16.54 x 16.54 x 10.83")

Gain

25 dBi

Networking Interface

(1) 10/100/1000 Ethernet Port

Enclosure

Outdoor UV Stabilized Plastic

Max. Power Consumption

8W

Max. TX Power

26 dBm

Power Supply

24V, 0.5A Gigabit PoE Adapter (Included)

Power Method

Passive PoE (Pairs 4, 5+; 7, 8 Return)

Wind Survivability

200 km/h (125 mph)

Wind Loading

342.5 N @ 200 km/h
(77 lbf @ 125 mph)

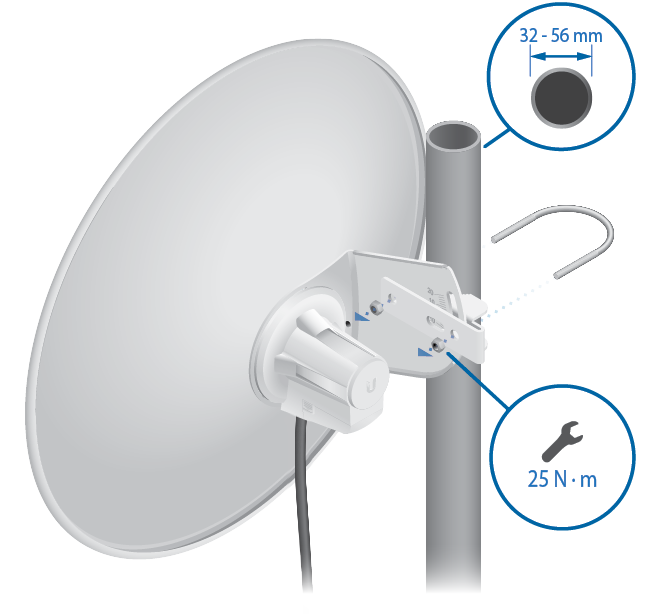

Mounting

Pole Mounting Kit Included

Salt Fog Test

IEC 68-2-11 (ASTM B117),
Equivalent: MIL-STD-810 G Method 509.5

Vibration Test

IEC 68-2-6

Temperature Shock Test

IEC 68-2-14

UV Test

IEC 68-2-5 at 40 C (104 F)
Equivalent: ETS 300 019-1-4

Wind-Driven Rain Test

ETS 300 019-1-4
Equivalent: MIL-STD-810 G Method 506.5

Operating Temperature

-40 to 70 C (-40 to 158 F)

Operating Humidity

5 to 95% Noncondensing

Certifications

CE, FCC, IC

Worldwide

5150 - 5875

US/CA
U-NII-1
U-NII-2A
U-NII-2C
U-NII-3

5150 - 5250
5250 - 5350
5470 - 5725
5725 - 5850
